Name: Kit 237, Land Rover V8 Engine To 6 Speed MT82 Gearbox Adaption
SKU: K237
Availability: InStock

Kit 237, Land Rover V8 Engine To 6 Speed MT82 Gearbox Adaption

£1,245.00

Kit to adapt 6 speed MT82 Getrag manual transmission (as fitted to 2007-on Puma Defender) to Land Rover V8 engines (3.5/3.9/4.0/4.2/4.6L)

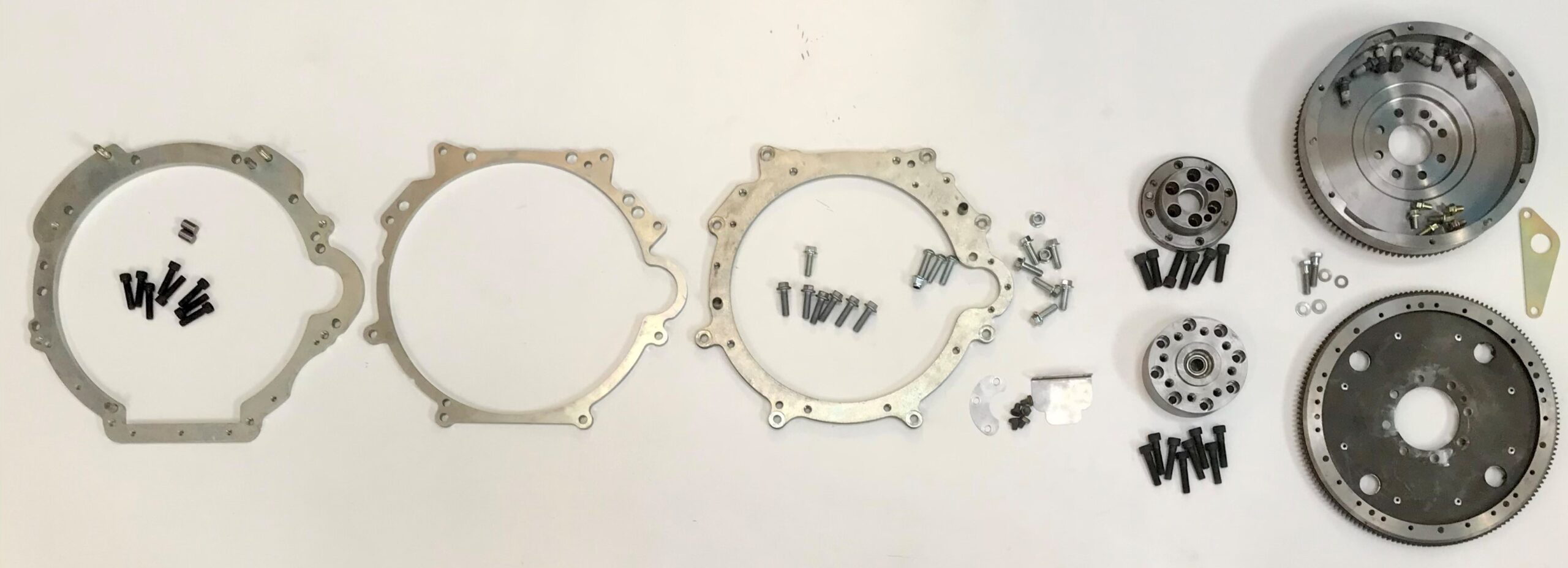

This kit comprises of 3 adaptor plates to adapt the 6 speed gearbox to the V8 cylinder block. A flywheel adaptor, spigot bearing, flywheel and all hardware are supplied in this kit. The flywheel will accept the standard puma clutch as used in the 2007-on Defender Tdci.

The MT82 ratios are:

1^st	2^nd	3^rd	4^th	5^th	6^th
5.443:1	2.839:1	1.721:1	1.223:1	1:1	0.742:1

Full fitting instructions included.

Fitting note – When this kit is fitted with a V8 in a Puma Defender instead of the 2.4 or 2.2 Puma engine the V8 engine will sit 24mm further forward compared to a standard Defender V8 installation.

Optional extras (please select below if these are required):

A new Tdci flywheel (part number: LR116372P1).
Kit 237A, a pair of front engine mounting brackets to fit the V8 onto the standard Puma Defender chassis brackets.

Manufacturer: MD Engineering.

In stock

Description

What’s Included:

Kit 237 includes:

Adaptor plate
Spigot bearing
Clutch cover spacer (used to utilise the standard Isuzu clutch cover and flywheel with a LR 4 cyl type drive plate)
Engine mounting feet (bolts onto the Isuzu cyl block then allowing the engine to sit onto standard V8 chassis bracket and rubbers)
Hardware; adaptor plate to Isuzu cylinder block
Hardware & dowels; adaptor plate to V8 manual transmission
Hardware; mounting feet to cylinder block
